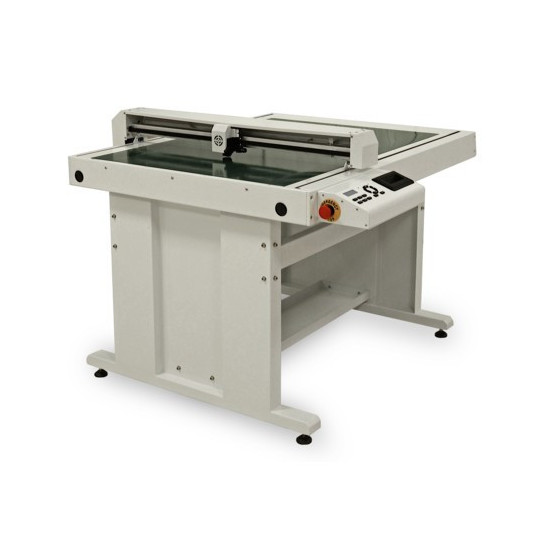

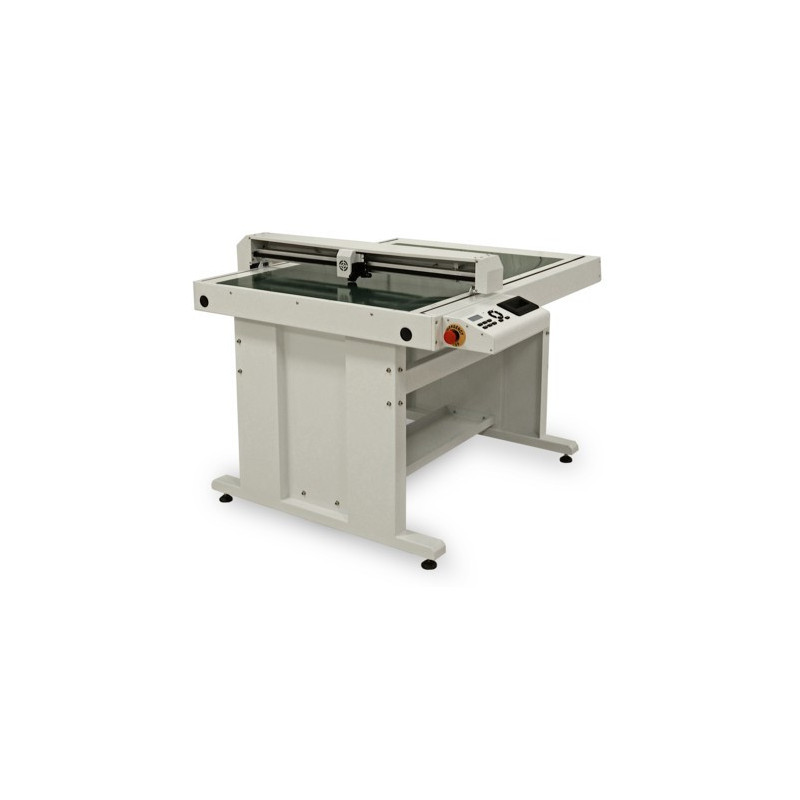

SECABO | FC100 Flatbed Cutter, 78x108cm

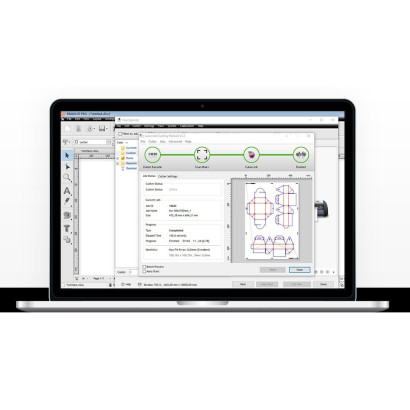

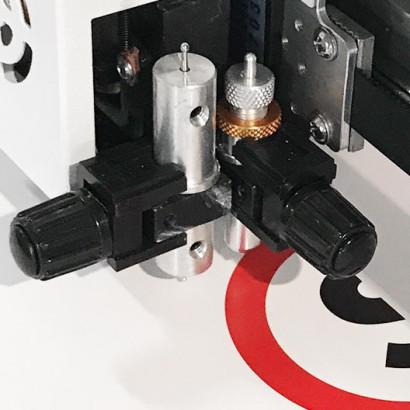

Secabo FC100 flatbed cutter with DrawCut Pro software is perfectly suited for small and medium-sized production runs and prototyping. The FC100 is a freestanding device with a quiet vacuum pump included, offering a maximum working area of 78 cm x 108 cm with a reliable vacuum hold-down system. The cutting mat enables smooth operation even when cutting ''through". The head is equipped with two tool holders, allowing simultaneous cutting and creasing. The DrawCut cutting software and LAPOS Q registration mark recognition system enable contour cutting of printed media. Paper, cardboard, stickers, labels, films and other media can be cut precisely along contours in any shape. DrawCut handles design and graphic jobs and imports many graphic file formats, features automatic creation of cutting contours for raster graphics and the ability to generate barcodes, allowing the cutting file to be selected automatically from the job queue.

capabilities:
-preparation of graphic files and cutting lines using the included DrawCutPro software
-kiss cutting
-perforating
-through-cutting
-creasing

technical data:
-USB interface
-max. working area 78cm x 108cm
-max. cutting thickness 1,5 mm
-downforce 50g - 500g
-max. speed 600 mm/s
-LCD display
-dimensions (W x D x H) 128cm x 127cm x 98cm
-weight 188 / 140 kg

included:
-DrawCut Pro software
-vacuum pump
-drag knife holder
-creasing tool holder
-pen (for automatic cutter calibration)
-drag knife, 45-degree angle
-stand
-power cable
-felt mat and silicone mat for the vacuum table
-user manual in English
