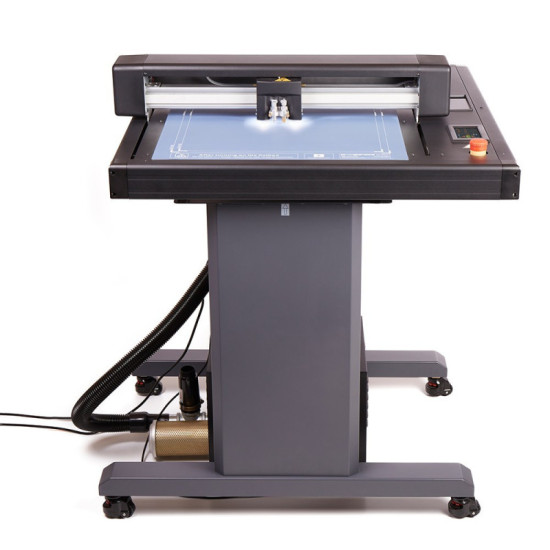

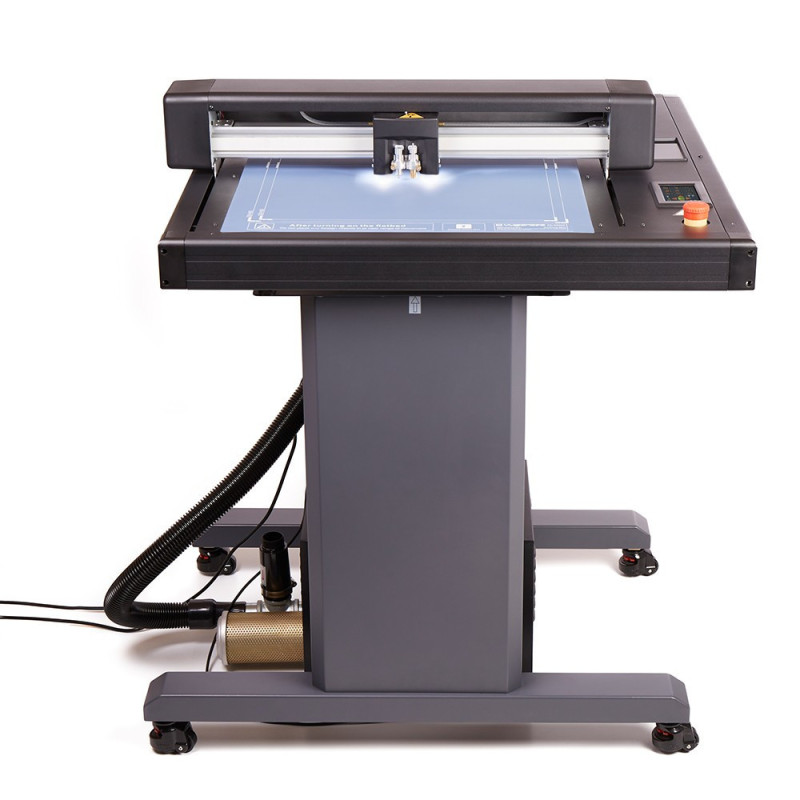

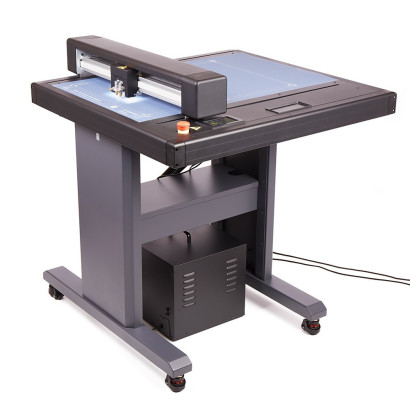

VULCAN | FC-500VC Flatbed Plotter, 48x66cm

Vulcan FC-500VC plotter is an ideal device for small and medium-sized production and prototyping. The vacuum worktable allows through-cutting of materials such as paper, cardboard, films and many others. The head is equipped with two tool holders, enabling simultaneous cutting and creasing. The Vulcan FC-50VC plotter is a freestanding device equipped with a quiet vacuum pump, while communication with the plotter is provided by a USB and Ethernet interface and a USB memory port.

Thanks to the built-in CCD camera and digital print positioning system, the plotter scans the QR code and automatically matches cutting files from the job queue or USB memory. The plotter can retrieve cutting files from USB memory, allowing it to operate completely independently without being connected to a computer.

The device comes with professional SignCut software with the option to install a plug-in for popular graphics programs such as Corel Draw or Illustrator.

key features:
-automatic contour cutting (QRcode system, digital print positioning, )
-dual-tool head (simultaneous cutting and creasing)
-kiss cutting, perforating, through-cutting, creasing
-reliable vacuum table

technical data:
-working area 480 x 660mm
-speed 10-700 mm/s
-downforce 600g max
-4.3-inch LCD display
-power supply and power 240V / 550W max
-dimensions (W x D x H) 97cm x 99cm x 105cm
-weight  62kg (plotter with stand) + 23 kg (vacuum pump)

included:
-SignCut Pro software (full lifetime license)
-vacuum pump with filter
-drag knife holder
-creasing tool holder (+ additional creasing head)
-pen (+ 5 refills)
-30-degree drag knife
-60-degree drag knife
-power cable, USB cable, Ethernet cable
-felt mat for vacuum table
-stand
-English-language user manual
