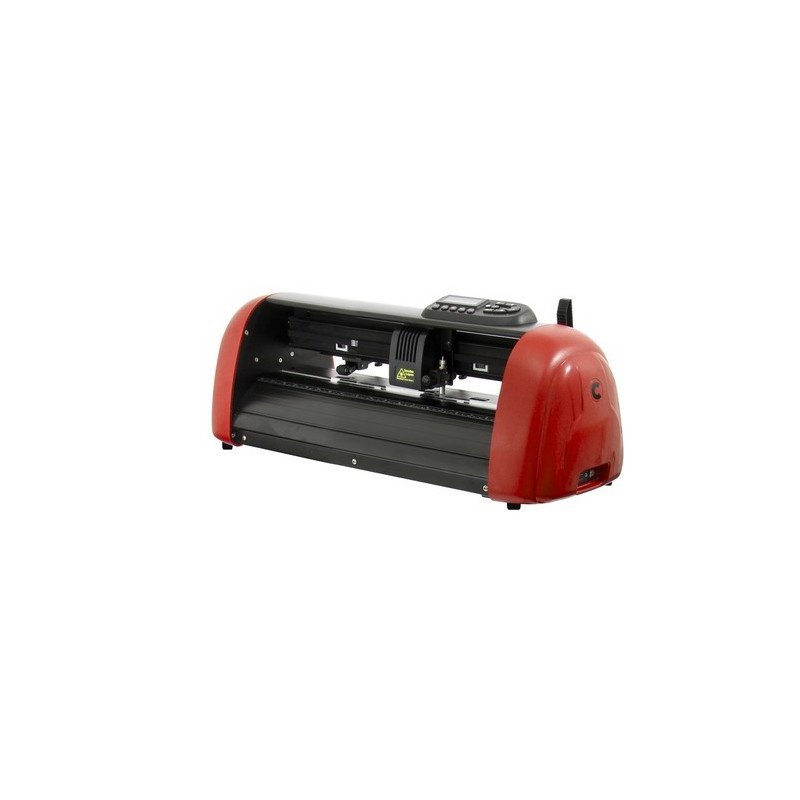

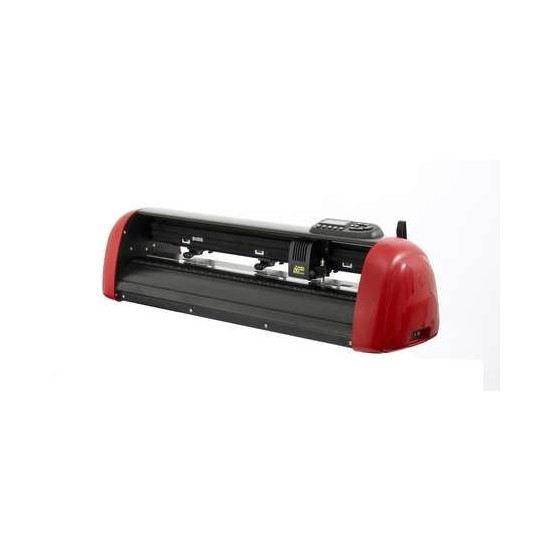

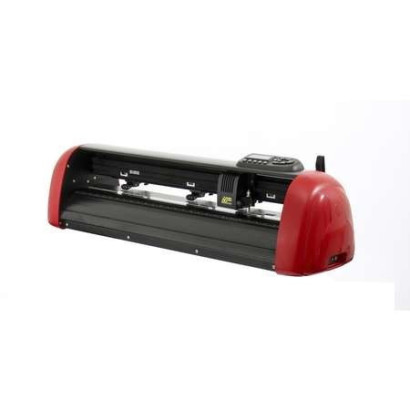

SECABO | C30 IV, C60 IV, C120 IV Cutting Plotter

The Secabo CIV series cutting plotters are a development of the well-known CIII series film-cutting plotters from Secabo. Better cutting quality, as well as greater reliability and precision, make Secabo suitable for nearly all professional areas of advertising technology, garment production or, for example, the production of information signs. The plotter is available in three working widths: 33 cm, 63 cm.or 123 cm.

With the Secabo C30IV / C60IV or C120IV, you can process most materials available on the market, such as self-adhesive films, vinyl films, flock, flex, stencil film, paper, cardboard, etc.

The large backlit display and large buttons enable easy operation of the Secabo plotter from the C series, while the improved LAPOS2 technology—contour cutting—enables precise contour cutting of previously printed materials (LAPOS2 does not work with Apple devices). Convenient control of the C30IV / C60IV / C120IV plotter settings is supported by the supplied DrawCut LITE software.

Technical data:
max. media width: 1350mm | 720 mm | 420 mm
max. media thickness: 1 mm
max. cutting width: 1260mm | 630 mm | 330 mm
max. cutting speed: 600 mm/s
interface: USB
downforce: 50 - 750 g
backlit LCD display
weight without packaging: 12 kg
weight with packaging: 22 kg
