GCC | Jaguar V LX Plotter

Plotters from the Jaguar series combine high cutting precision, a stable construction and ease of use.

Jaguar is available in several models with different cutting widths - from 610mm to 1830mm

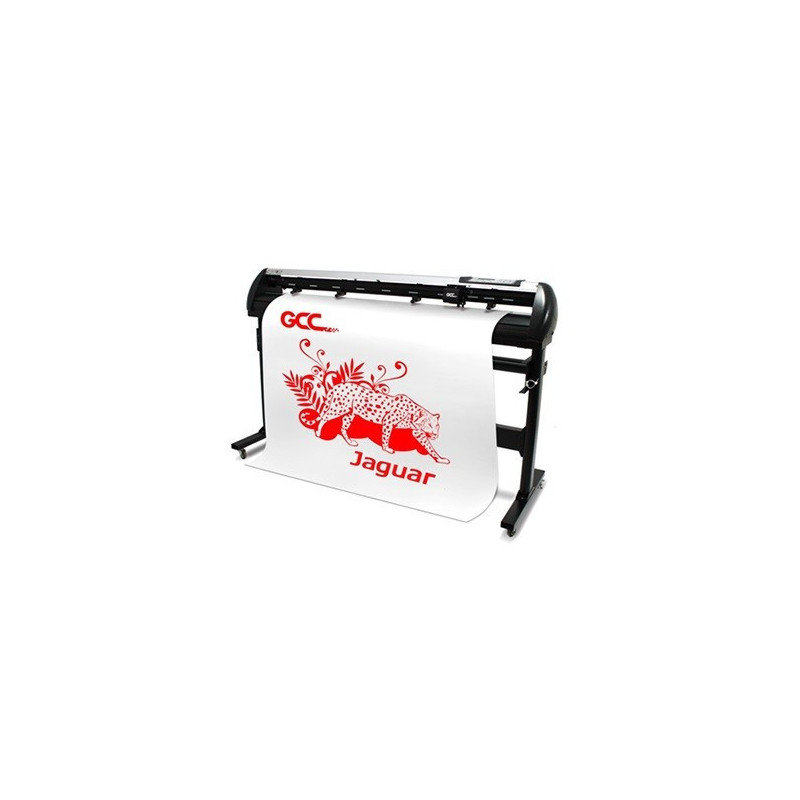

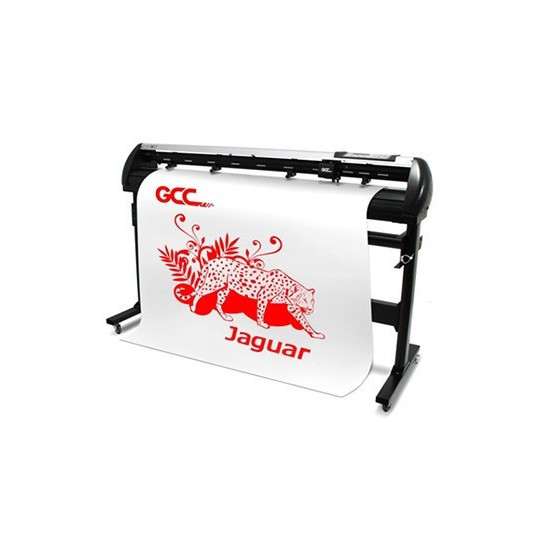

The Jaguar V features a stable plotter construction based on an internal steel frame. Each plotter is equipped with a wheeled stand that makes it easy to move the plotter, as well as a practical media basket that reduces the unwanted effect of static electricity in the media.

The Jaguar V is a very fast and quiet plotter for cutting a wide range of materials, as the wide range of blade pressure adjustment enables it to cut virtually all types of media available on our market. Jaguar plotters feature an expanded work area function - cutting without side margins. Another new feature is the active knife simulation function, which improves cutting precision in very thick materials. Compared with competing products, the increased number of pinch rollers and the precisely designed roll media feeder allow even very long sections to be cut flawlessly without supervising the device. The easy-to-use control panel with an LCD screen and messages in Polish makes working with the Jaguar easy and efficient. A third USB communication port is built into the device. All models are covered by a 2-year warranty.

Key features:

• Precise AAS II contour-cutting system
  The plotter is equipped with a contour-cutting system. It is particularly useful for producing various types of stickers.
• Max. media thickness up to 0.8mm
• Useful and user-friendly control panel in Polish
  The simple control panel is easy to use for both professionals and beginners, and allows all plotter operating parameters to be set.
• Electronically adjustable blade pressure
  Freely adjustable blade pressure from 0 to 600 grams makes it easy to cut various materials, from delicate vinyl films through fluorescent and metallized films to thick and hard masking films for sandblasting stone. Thanks to these parameters, Jaguar V plotters are used not only in advertising, but also in stoneworking and glassworking facilities.
• Drivers
  The included control software allows the plotter to be installed in Windows 95/98/2000/XP as a printer. This enables the user to cut graphics directly from vector graphics programs such as CorelDraw!.
  Media feeding system
• The functional and easy-to-use media feeding system (consisting of two guide rollers, securing rings and a feeder) allows very long graphics to be cut without continuous operator supervision. Guaranteed repeatability is 8 meters of cutting length.
• Material sensors
  Material start and end sensors enable automatic measurement of the length of the loaded media and stop the plotter when the material runs out. They save time and money and protect the plotter from damage.
• Overcut function
  The overcut function significantly increases cutting effectiveness, especially in thick materials. Activating this function extends the first and last vector of each object by a specified value.
• Pen operation
  The plotter can be equipped with a pen, allowing every user to independently create project drawings and templates on any material.
• Electronically adjustable blade offset
• Blade offset adjustable with an accuracy of 0.025 mm
• Active knife simulation function
• 3 pinch rollers for precise media guidance
• Reliable and precise motors
• Two blades and a media cutter included as standard
• 24-month warranty on all Jaguar V models. Jaguar V 101S and 132S models include on-site installation service, while Jaguar V 61 and 76S models include "door to door" service (the authorized service center arranges collection and delivery of the device to the installation location).

Technical specifications:

Drivers/software:
https://gccworld.com/download.php?sid=driver&cid=3
