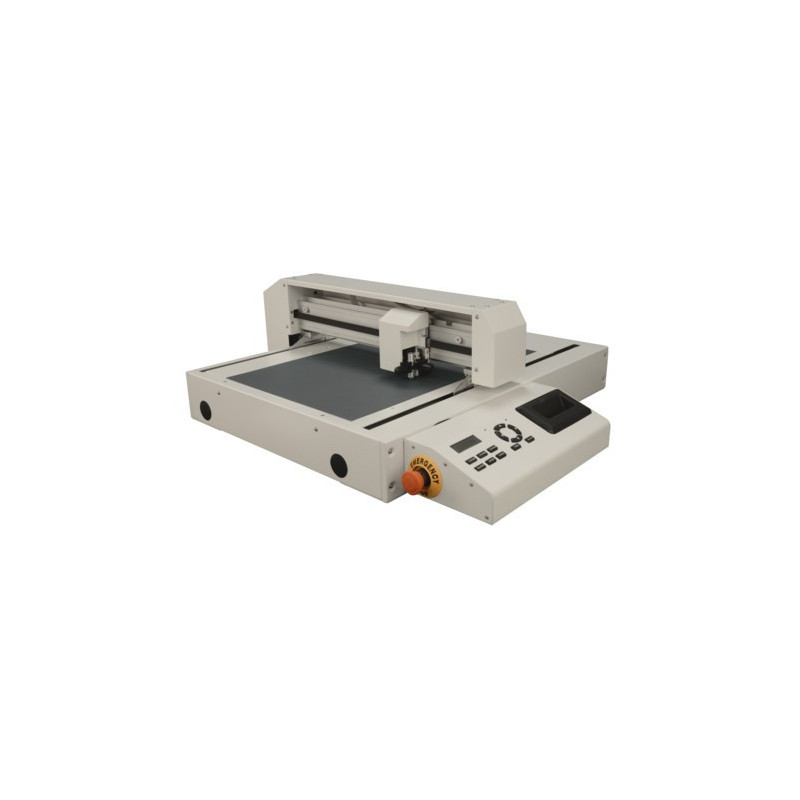

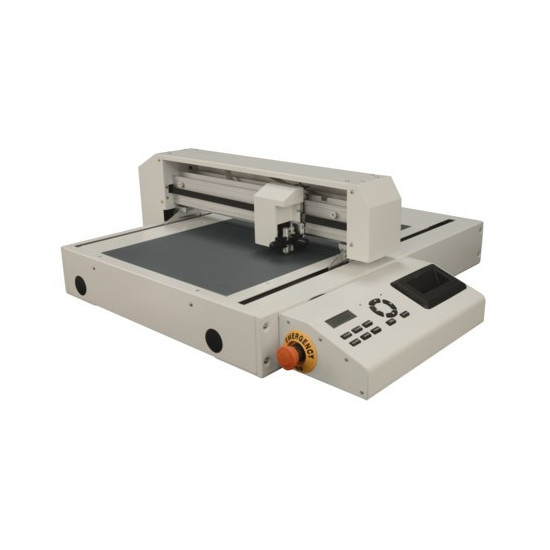

SECABO | FC50 Tabletop Plotter, 35x52cm ExDemo

The Secabo FC50 flatbed plotter with DrawCut Pro software is ideally suited to small and medium-sized production runs and prototype creation.

The FC50 is a freestanding device supplied with a quiet vacuum pump. It offers a maximum working area of 35 cm x 52 cm with a reliable vacuum hold-down system. The cutting mat enables smooth operation even when cutting ''through". The head is equipped with two tool holders, allowing simultaneous cutting and creasing.

DrawCut cutting software and the LAPOS Q registration mark recognition system enable contour cutting of printed media. Paper, cardboard, stickers, labels, films and other media can be cut precisely along contours in any shape. DrawCut handles design and graphics jobs and imports many graphic file formats. It features automatic creation of cutting contours for raster graphics and the ability to generate QR codes, allowing the cutting file to be selected automatically from the job queue.

capabilities:

-preparation of graphic files and cutting lines
-kiss cutting
-perforating
-through cutting
-creasing

technical specifications:

-USB interface
-max. working area 35cm x 52cm-max. cutting thickness 1,5 mm
-clamping force 50g - 500g
-max speed 600 mm/s
-LCD display
-dimensions (W x D x H) 76cm x 86cm x 30cm-weight 72 / 35 kg

included:

-DrawCut Pro software
-vacuum pump
-drag knife holder
-creasing tool holder
-45-degree drag knife
-power cable and USB cable
-silicone mat and felt mat for the vacuum table
-user manual in English

We invite you to our showroom in Warsaw.
A demonstration can be arranged at: biuro@viscar.pl
or by phone: Tel. 22 111 50 06 or 509 111 937
