VULCAN | Sheet Cutter SC-350, 35x50cm

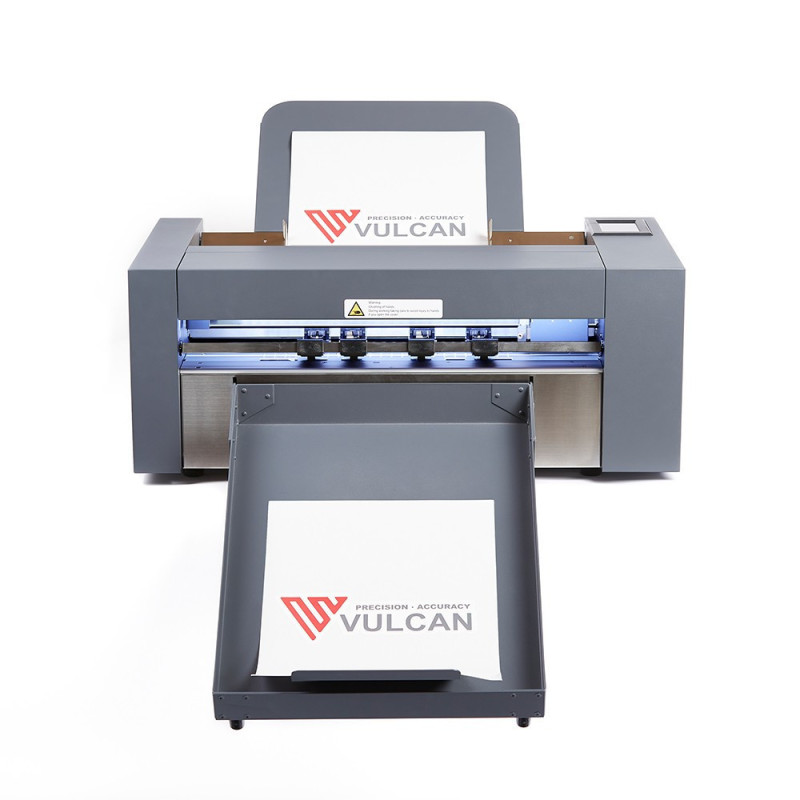

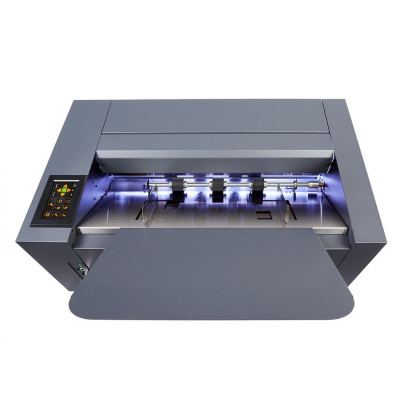

The Vulcan SC-350 cutting plotter is an advanced, super-fast desktop plotter for cutting stickers and labels from sheets with a maximum size of 350x500mm. The SC-350 was designed for fast and precise processing of self-adhesive materials. It is the ideal solution for automatic, precise and exceptionally fast cutting of stickers and labels in any shape. It supports co-packing, labelling and finishing.

The Vulcan SC-350 plotter helps minimize costs associated with time and sheet cutting. Operating the plotter is intuitive, allowing employees to quickly and efficiently learn how to use it. Its high precision and repeatability make the Vulcan SC-350 an ideal tool for companies offering co-packing, packaging and finishing services. The device lets you forget about inconvenient, slow and outdated guillotine cutting, while its speed and precision surpass those of other plotters available on the market.

A simple system based on reading registration marks allows the Vulcan SC-350 to store thousands of cut-sheet templates in external memory. This means it can work as a label cutter, but there is nothing to prevent its main task from being cutting stickers, which are more highly personalized and therefore produced in smaller individual runs. Automation of the packaging production process is therefore one of the device’s key advantages.

The cutting settings allow labels and stickers to be cut from various materials. You can adjust the cutting force according to the sheet weight. Thanks to the built-in CCD camera and digital print-positioning system, the plotter scans the QR code and automatically matches cutting files from the job queue or USB memory. The plotter can retrieve cutting files from USB memory, allowing it to operate completely independently without being connected to a computer. This makes setup easier and, consequently, speeds up labelling and finishing.

The device comes with professional SignCut software, with the option to install a plugin for popular graphics programs such as Corel Draw and Illustrator.

Key features:
- automatic sheet feeding and cutting,
- automatic matching of the cutting path to the printout in the feeder,
- contour cutting of printouts at speeds of up to 1200mm/s,
- sheet loading and cutting-path loading time of approx. 6 seconds.

Technical specifications:

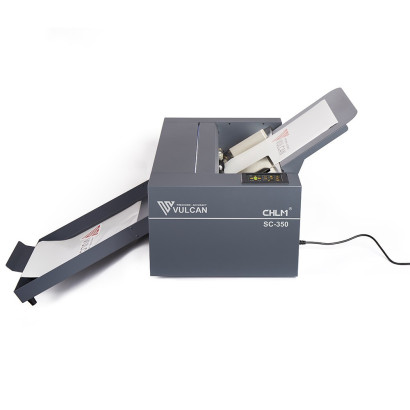

- automatic sheet feeder,
- sheet pickup time: 2 seconds
- sheet dimensions:
   width 180 to 350mm,
   height 150 to 500mm,
- cutting speed from 10 to 1200 mm/s,
- max. cutting force: 400 g,
- max. sheet weight: 350g/m,
- registration-mark reading time: 4 seconds,

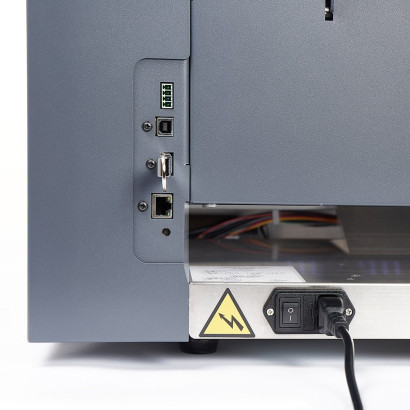

- interface: USB 2.0 (full speed) / U-Flash / Ethernet,

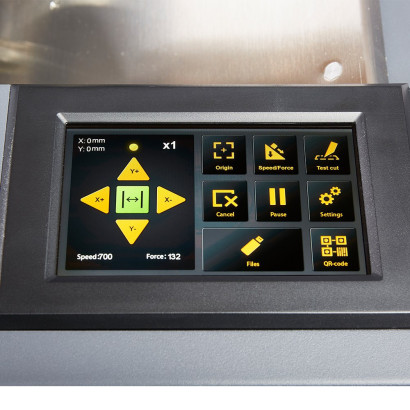

- touchscreen display (4.3-inch LCD),
- power supply and consumption 240 V / 60W,
- dimensions (output tray + plotter + feeder tray) 111 x 75 x 60 cm,
- weight 36 / 33kg,
- package dimensions 87 x 55 x 58 cm.

Included:
- SignCutPro software (lifetime license),

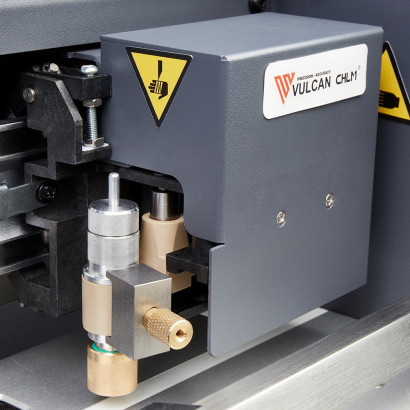

- drag-knife holder,
- pen + 5 refills (for automatic plotter calibration),
- 30-degree drag knife,
- 60-degree drag knife,
- power cable, USB cable, Ethernet cable,
- user manual in English.
