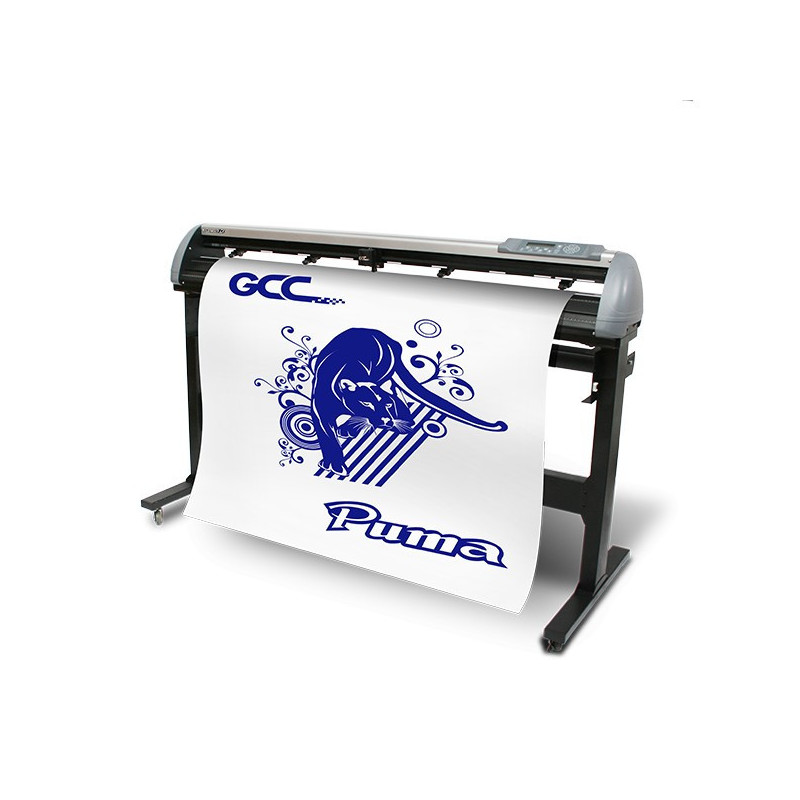

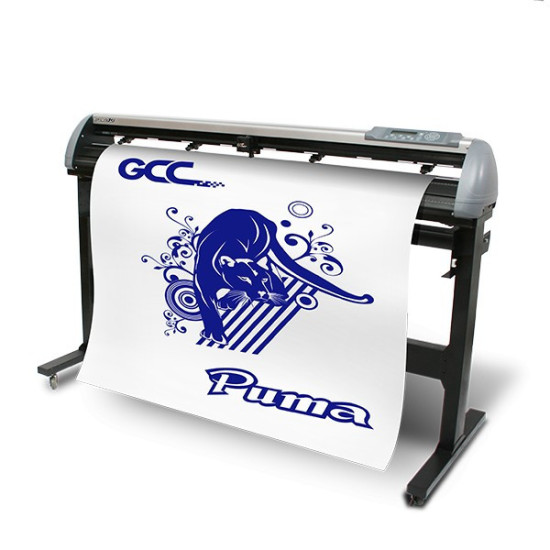

GCC | Puma IV 132LX Plotter

Puma IV series plotters are designed for small and medium-sized workshops producing small and medium quantities of prints on a wide range of materials, while prioritizing working comfort and quality. Designed for cutting roll-fed media up to 130cm wide (maximum material width: 147cm).

Plotters from the Taiwanese company GCC are equipped with DC servo motors and the AAS II system, which enables precise contour cutting. This function is particularly useful for cutting films previously printed using solvent, latex or sublimation inks (cutting by registration marks). The AASII system works very well with most graphics programs, accurately recognizing registration marks. It is also ideal for cutting stickers, labels and many other printed products, especially those with irregular cutting shapes.
Electronically adjustable blade pressure from 0 to 500 grams enables cutting various types of film, including self-adhesive, flex, flock, reflective and sandblasting films.

Key features:

• The Puma IV plotter is equipped with a precise contour-cutting system (AAS II)
• The plotter has 3 communication ports: USB 2.0, serial (RS-232C), Ethernet
• Thanks to servo motors and a completely new, more robust carriage, the plotter is quiet, fast and accurate. It reaches speeds of up to 600 mm/s.

• The display and easy-to-use control panel ensure trouble-free operation and quick access to the device’s most important operating parameters, such as blade offset, cutting speed and pressure.
• A precise film-guiding system with an option to extend the working area allows for better material utilization.
• Cutting and drawing capability (optional), thanks to quick tool changes. Active blade emulation improves the quality of cutting thick materials.
• The device allows operating settings (pre-set) for four blades/types of work to be stored in the plotter’s memory, enabling quick changes of tools/media without calibration.
• High-quality rollers for guiding the film.
• Plotter stand included as standard.
• 24-month door-to-door warranty.

TECHNICAL DATA:
