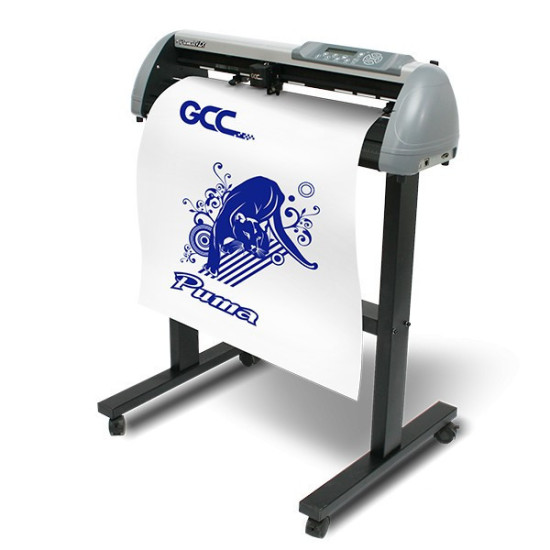

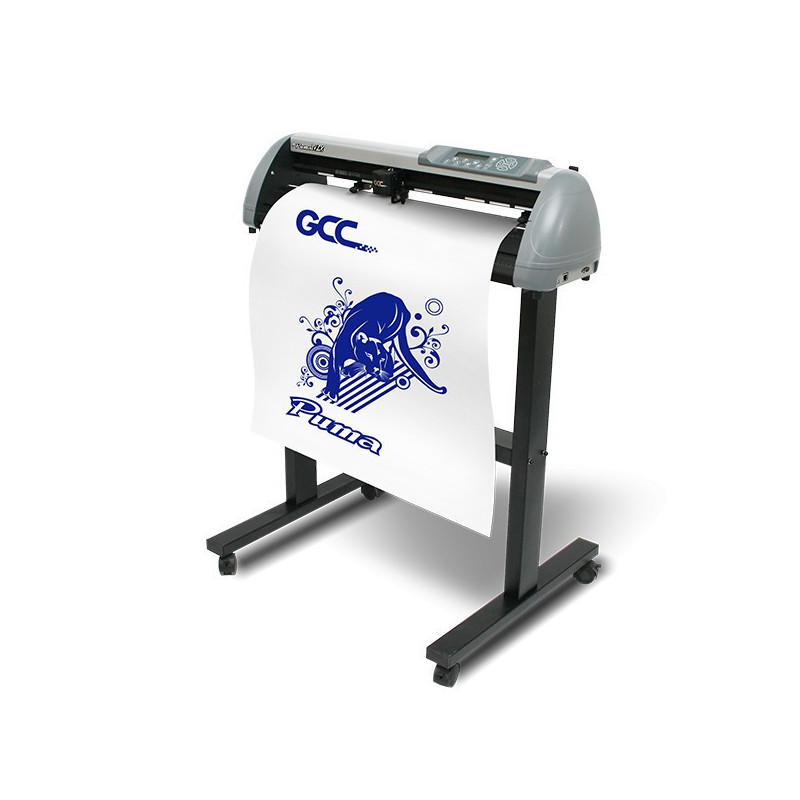

GCC | Puma IV 60LX Plotter

Puma IV series plotters are an ideal solution for small and medium-sized studios producing small and medium quantities of prints while focusing on working comfort and quality. Designed for cutting film from rolls up to 60cm wide.

Plotters from Taiwanese company GCC, manufactured in the Puma 4 series, are equipped with DC servo motors and the AAS II system, which enables precise contour cutting. This function is particularly useful for cutting films previously printed with solvent, latex or sublimation inks (cutting along registration marks). The AASII system works very well with most graphic programs, accurately recognizing the marks. It is also excellent for cutting stickers, labels and many other printed products, especially those with irregular cutting shapes.
Electronically adjustable blade pressure from 0 to 500 grams enables cutting various types of film, including self-adhesive, flex, flock, reflective and sandblasting films.

Key features:

• The Puma IV plotter is equipped with a precise contour-cutting system (AAS II)
• The plotter has 3 communication ports: USB 2.0, RS-232C , Ethernet
• Thanks to servo motors and a completely new, stronger carriage, the plotter is quiet, fast and accurate. It reaches speeds of up to 600 mm/s.

• A large, easy-to-use display and a 14-key control panel ensure trouble-free operation and quick access to the device’s most important operating parameters.
• Precise film guidance system.
• Cutting and drawing capability (optional), thanks to quick tool replacement.
• The user-friendly control panel with an LCD display showing 20 characters in two lines ensures easy and intuitive operation. The display allows users to control the plotter’s operating parameters, such as blade offset, cutting speed, blade pressure and cutting quality.
• The device allows operating parameters to be set for four blades/types of work.
• High-quality rollers guiding the film.
• 24-month door-to-door warranty.

TECHNICAL DATA:

Drivers/software:
https://gccworld.com/download.php?sid=driver&cid=3

Included:

-2.5mm blade holder

-2 blades

-stand and film basket
