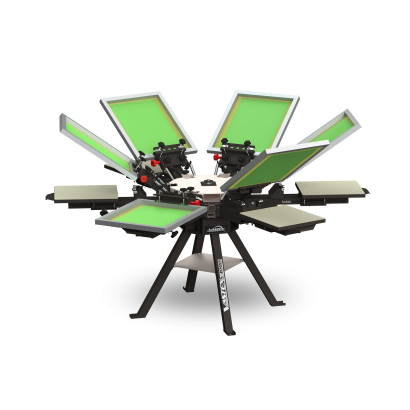

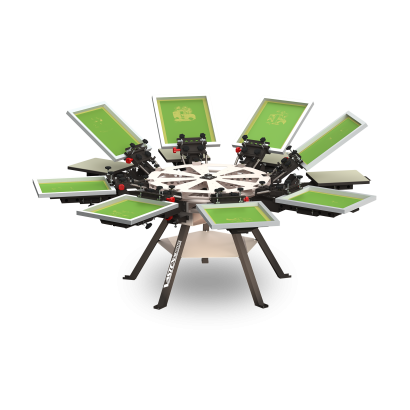

VASTEX | V-1000 Screen Printing Carousel

The V-1000 manual carousel for screen printing on garments has been designed to meet the needs of commercial print shops.

The V-1000 uses the industry's most unique floating-head design. Precise registration can be achieved without the high costs associated with machines offering performance similar to the V-1000.

V-1000 screen printing presses are available as tabletop models or with stands, in configurations ranging from 1-station / 1-color to 8-station / 8-color, in increments of one station and / or one color.

Modular, easy-to-expand designs allow growing print shops to expand the equipment as production needs increase.

Optional screen printing tool carts for tabletop models are equipped with shelves for screens, a shelf for inks, and locking casters. To complete the workshop, consider the new E-200 LED exposure unit with a vacuum pump and a durable LED lamp set.

Key features:

• long service life - steel pallets with rubber overlays - interchangeable with the V-2000 version
• precision registration system for multicolor printing
• floating head, 3-point bearing lock allows multiple heads to be lowered simultaneously
• six-way head leveling adjustment
• can work with screens up to 21" x 28" (51 x 61 cm)
• 3-year warranty against manufacturer defects

Additional set expansion options:  From 1 table, 1 color (1x1) to 8 tables, 8 colors (8x8)

Configurations:

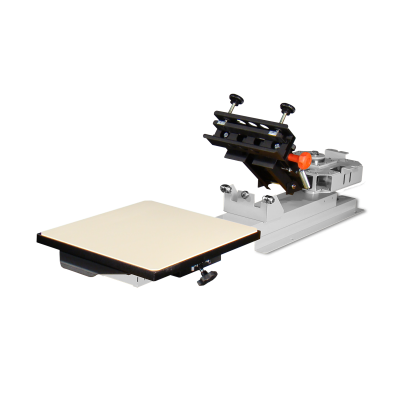

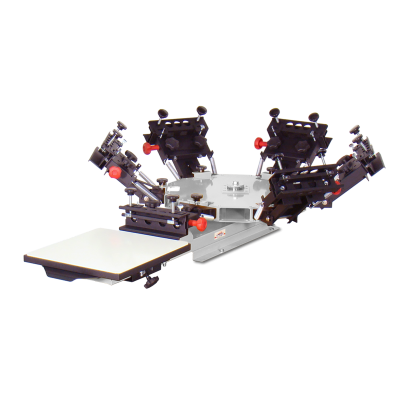

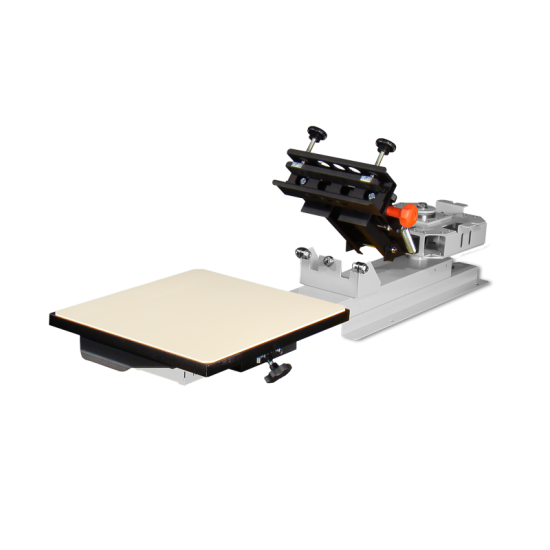

tabletop
V1-T11 - 1 station / 1 color
V1-T12 - 1 station / 2 colors
V1-T14 - 1 station / 4 colors
V1-T16 - 1 station / 6 colors

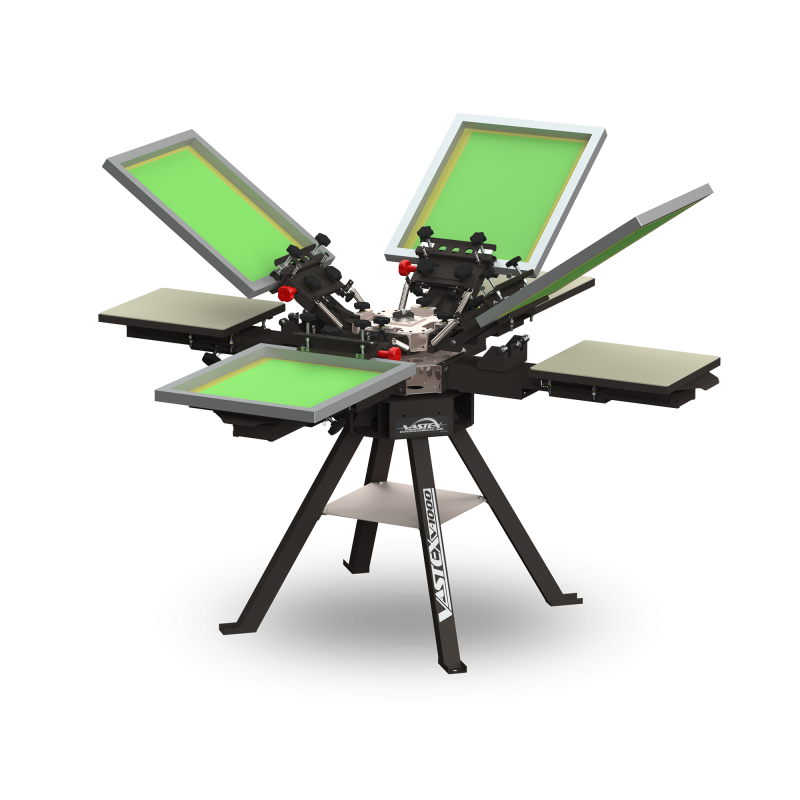

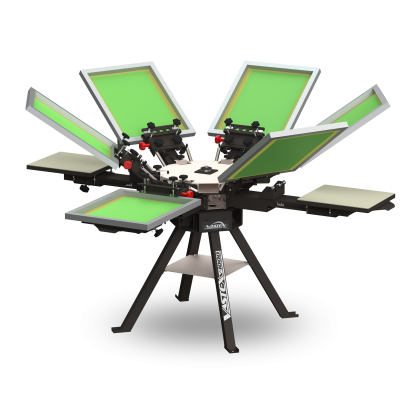

freestanding
V1-44 - 4 stations / 4 colors
V1-46 - 4 stations / 6 colors
V1-66 - 6 stations / 6 colors
V1-88 - 8 stations / 8 colors
